Product Description

We have played a major role in the manufacture and supply of a range of Grinding machines for food designed to industry defined standards. These machines are manufactured with the highest precision using high-quality raw materials and advanced machines, equipped with high-speed bearings and high-quality tempered/hardened blades. These machines are rigorously inspected and tested and are ideal for all types of wet and dry materials, including spices, herbs, powders and other such related items.

Product parameters

Model	Production Capacity	Feeding Size	Crushing Fineness	Spindle Speed	Motor Power	overall dimension	weight
15BIV.V.VI	10-50kg/h	6mm	20-120mesh	6000r/min	2.2kw	550400850 mm	100kg
20BIV.V.VI	60-150kg/h	6mm	20-120mesh	4500r/min	4kw	5506001250 mm	280kg
30BIV.V.VI	100-400kg/h	6mm	20-120mesh	3800r/min	5.5kw	6007001450 mm	350kg
40BIV.V.VI	160-1000kg/h	10mm	20-120mesh	3400r/min	11kw	8009001550 mm	550kg
60BIV.V.VI	500-2000kg/h	12mm	20-120mesh	2800r/min	18.5kw	9009001880 mm	680kg
80BIV.V.VI	1000-5000kg/h	12mm	20-120mesh	2000r/min	37kw	11009501960 mm	1500kg
100BIV.V.VI	2000-8000kg/h	12mm	20-120mesh	1500r/min	55kw	135010002100 mm	2500kg

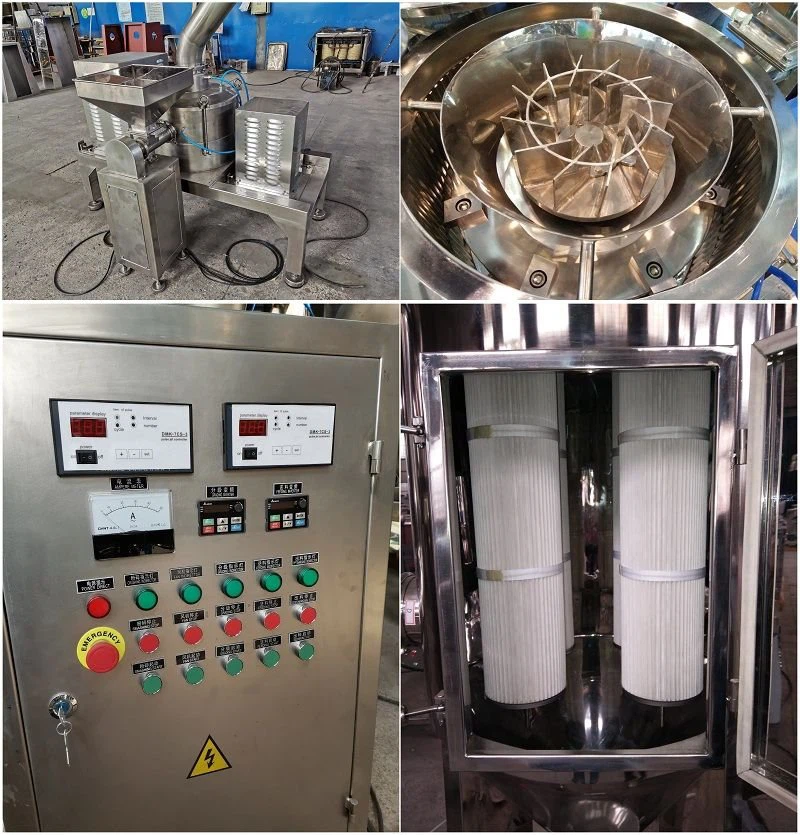

image001(001)

product-800-1521

Working principle

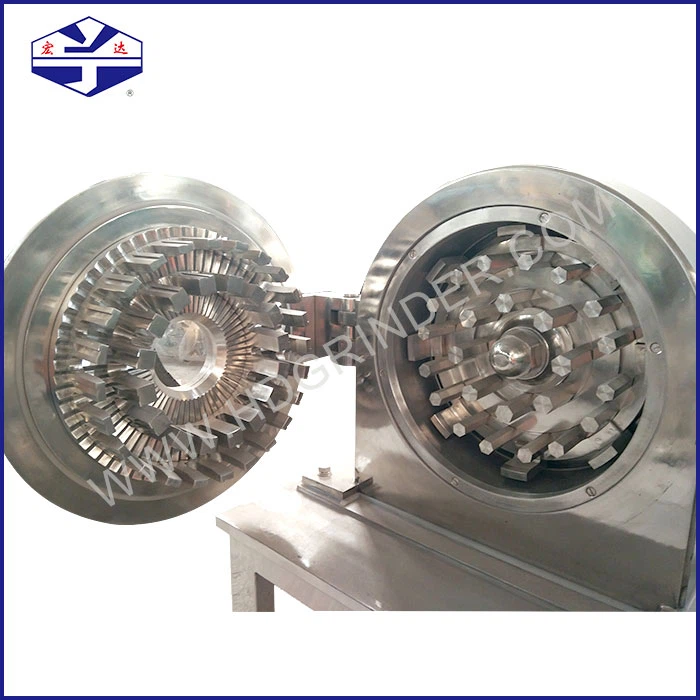

Grinding machine for food is made of 304 stainless steel. The door of the food grinder is equipped with a fixed toothed plate, which is equipped with a fixed toothed ring with steel teeth. A movable tooth plate is arranged on the main shaft, and movable teeth are arranged on the movable tooth plate. The movable teeth on the movable tooth plate and the fixed ring gear are staggered from each other.

Application

Grinding machine for food is suitable for material grinding in pharmaceutical, chemical, food and other industries.

image005(001)

image007(001)
